Installation of Process Pipelines

We professionally install and weld process pipelines made of stainless steel (AISI-304L, AISI-308L, AISI-316L, AISI-321), carbon steel (St.20, 30), as well as titanium and aluminum.

Welding technologies used:

  • Manual welding in argon atmosphere (WIG – TIG)

    Pipe diameter: from 6 mm

    Wall thickness: from 0.8 mm

  • Orbital welding (WIG – TIG)

    Pipe diameter: from 20 mm to 115 mm

    Wall thickness: up to 3 mm

  • MMA and MIG–MAG

    Used for working with pipe walls over 8 mm (with prior edge preparation and multilayer filling).

Wall thickness and welding method:

  • Up to 2.6 mm (AISI-304L, AISI-316L, AISI-321)

    "Pendel" method without the use of filler material (WIG–TIG).

  • Over 2.6 mm

    Welding of dividing grooves using filler material (WIG–TIG).

  • Over 8 mm

    Additionally, MMA or MIG–MAG is used (with edge preparation and multilayer welding).

This combined method provides advantages in quality, speed, and costs. We perform the entire range of associated works: design, cutting, pipe preparation, valve installation, verification, and testing of pipeline systems.

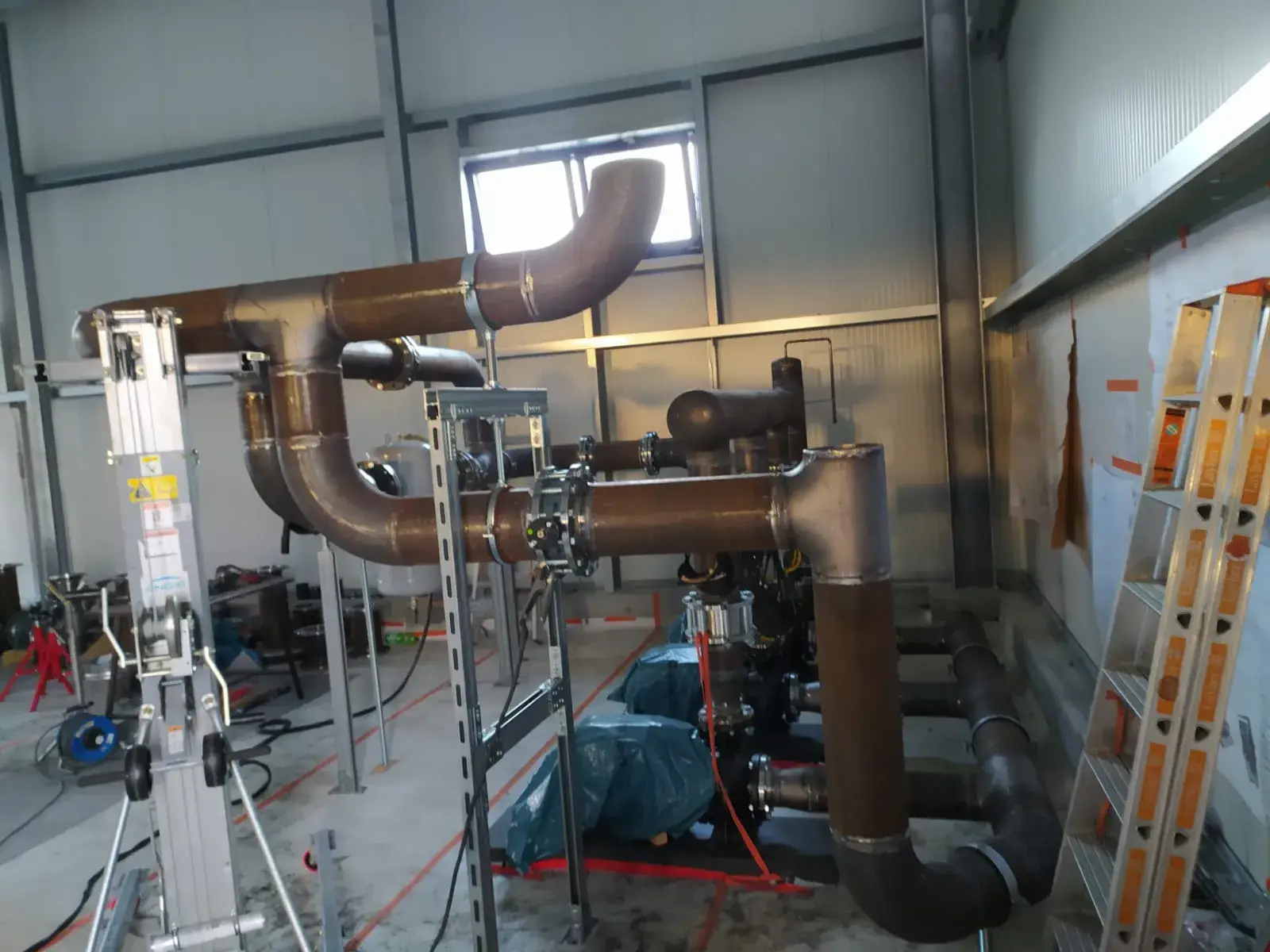

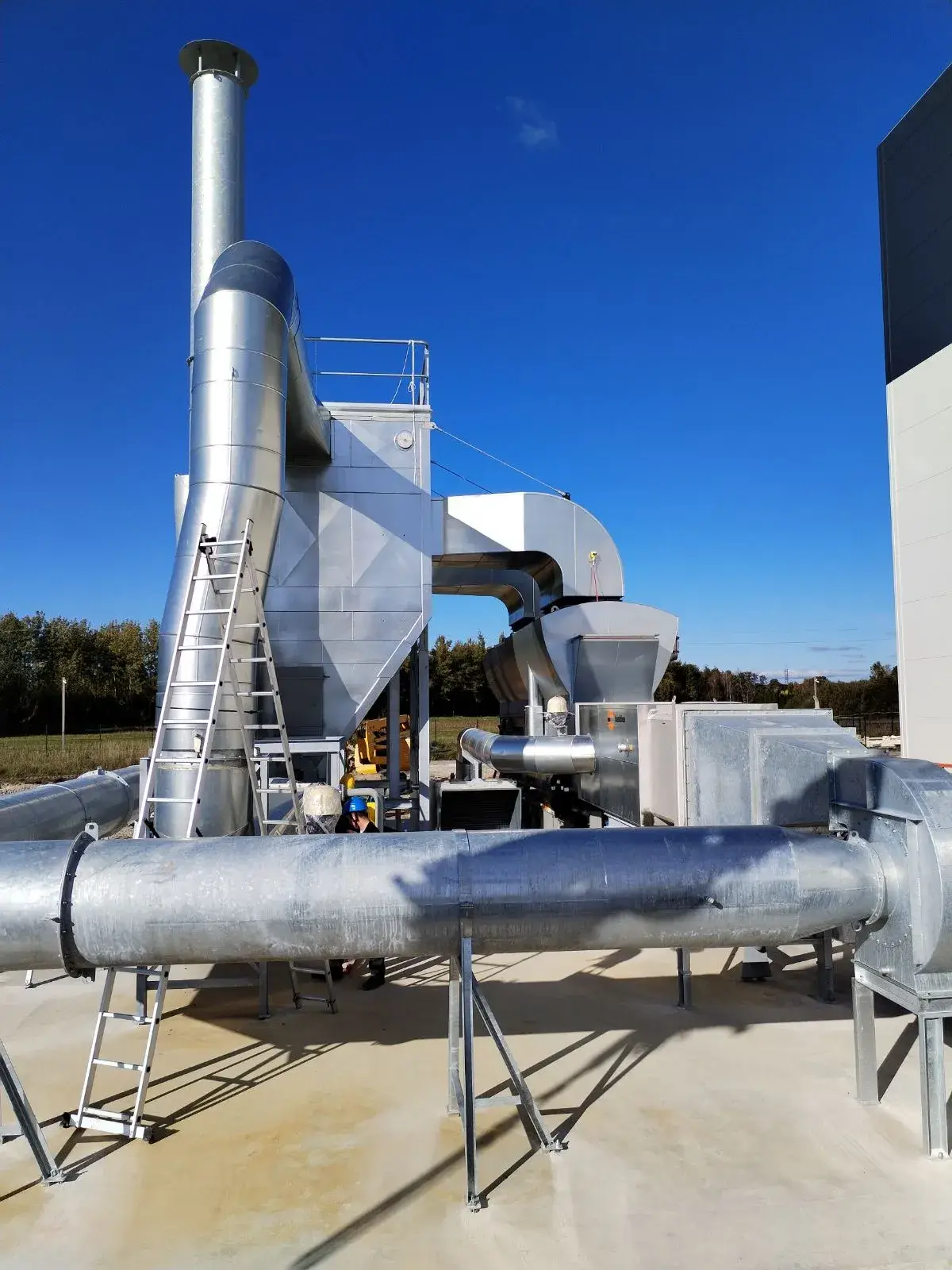

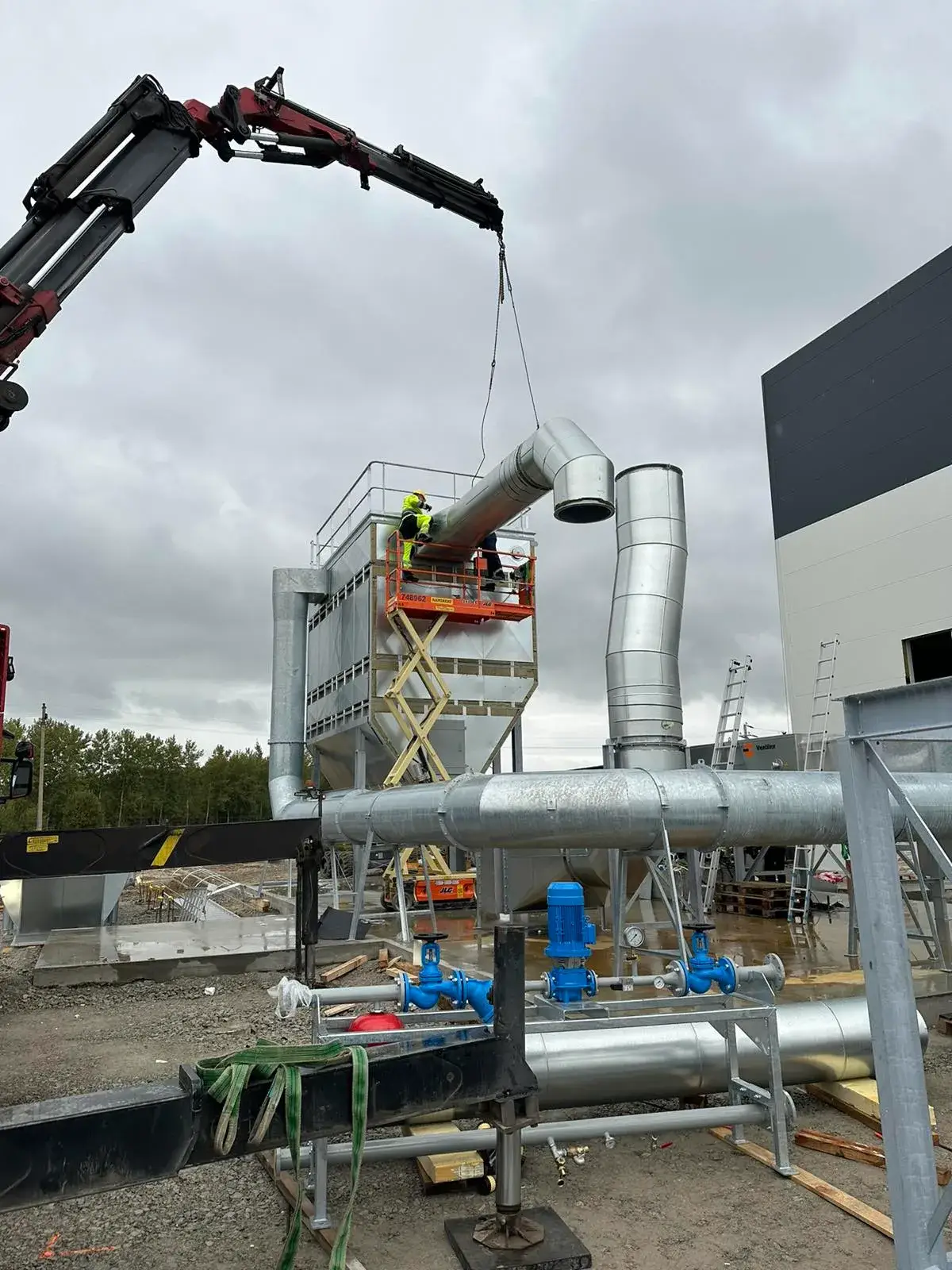

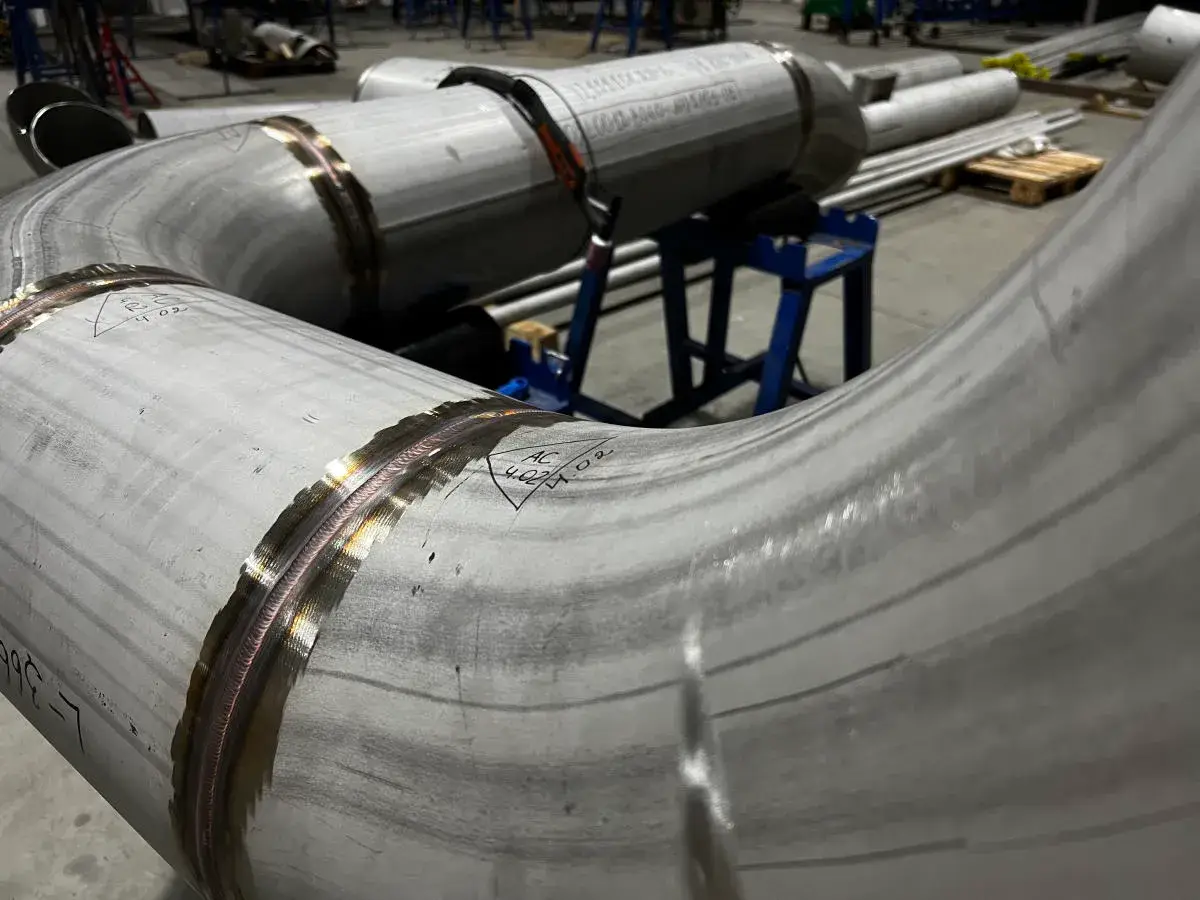

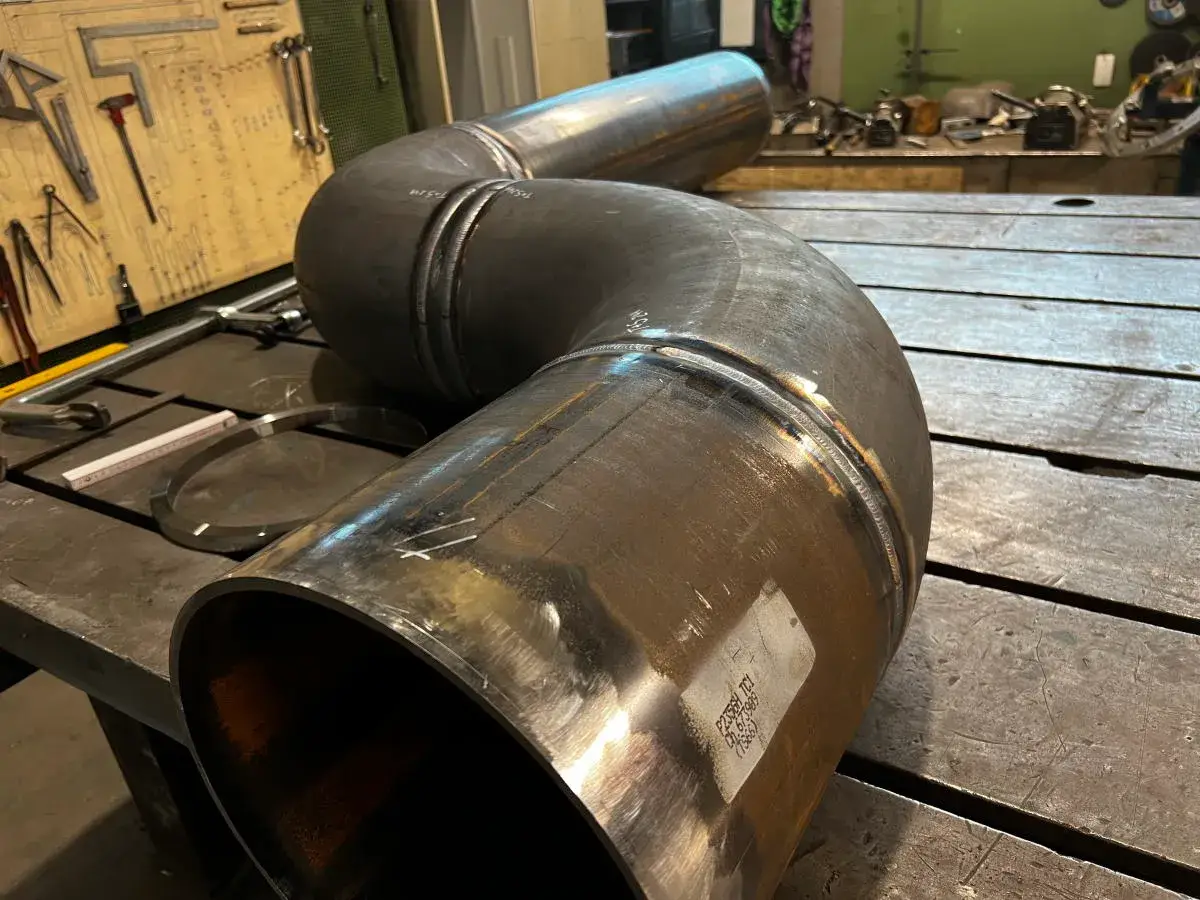

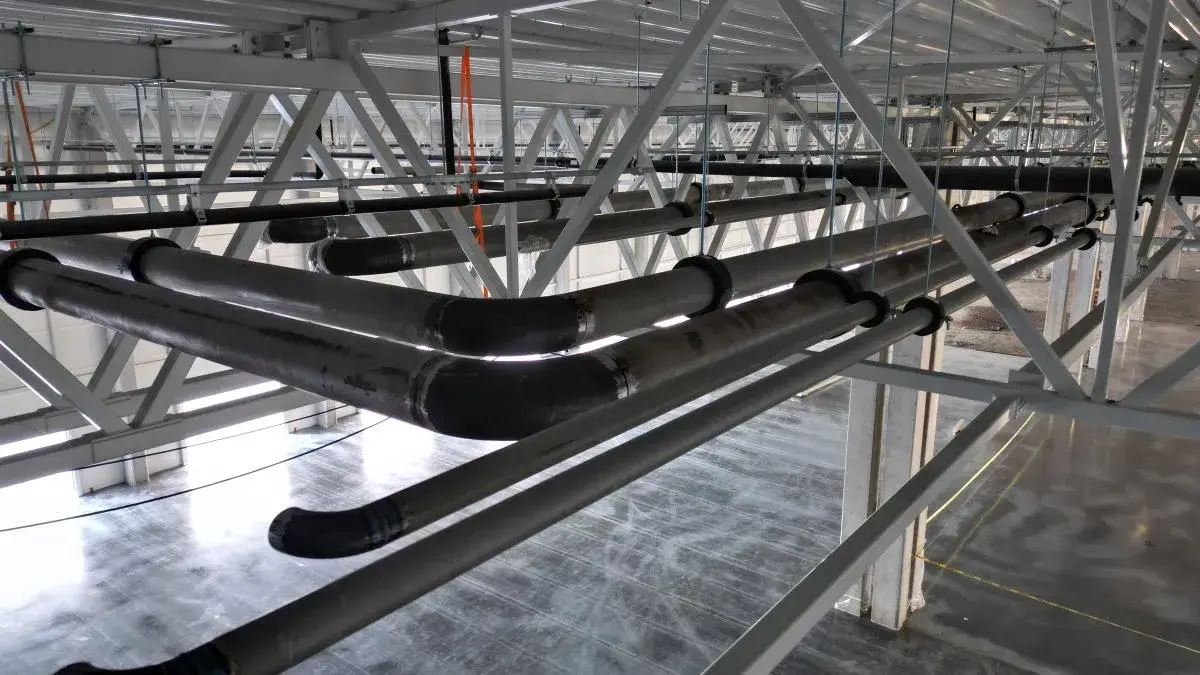

Our Realizations

Each of our projects reflects exact fulfillment of customer requirements, a well-thought-out economic model, and impeccable technical execution.

pipelines
pipelines
pipelines
pipelines
pipelines
pipelines
pipelines
pipelines
pipelines
pipelines
pipelines
pipelines

If you want to learn more about our completed works or discuss a future project, contact us in the way that is most convenient for you. We will be happy to share additional details and propose solutions perfectly tailored to your needs.
